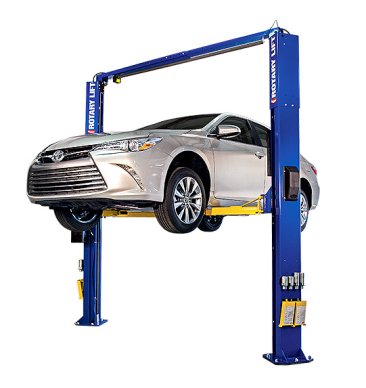

Rotary Two-Post Auto Lift (10,000lbs.-Capacity Asymmetric, 2' Extended) - R-SPOA10-FA-EH2
Zoom image

Rotary Two-Post Auto Lift (10,000lbs.-Capacity Asymmetric, 2' Extended) - R-SPOA10-FA-EH2

In stock (1000 items available)

10,000lbs.-Capacity Asymmetric Lift

Rotary Lift's Model SPOA10-FA-EH2 is a 10,000lbs. Capacity Two Post Asymmetric Car Lift with Flip-Up adapters and two feet of extended height. This surface-mounted car lift features a true asymmetric design for easy vehicle entry, and the factory-rotated columns allow a vehicle's doors to be fully opened while it's positioned on a lift!

Note: Freight charges for this product are NOT included and will be calculated when order is placed. Local sales tax rates will apply on all Rotary Lift purchases that are drop-shipped from the manufacturer. Regional customers may will-call this product at our warehouse in Hanover Park, IL.

  • $4518.00
Qty:
  • SKU
    R-SPOA10-FA-EH2

EH2 For 10,000 lb. models: Includes 3” additional rise standard and provides 2 ft, extended height (models SPO10 and SPOA10). The Trio™ Arms are a new design that allows for low profile, 3-Stage arms and are exclusive to Rotary Lifts. All -RA and -TA style lifts are now designed with this feature.

Models SPOA10-TRIO-FA EH2 SPOA10-TRIO-TA EH2 SPOA10-TRIO-RA EH2 SPOA10 Conventional EH2
Arm Type

Trio™ 3-Stage Design

Trio™ 3-Stage Design

Trio™ 3-Stage Design

Conventional 2-Stage Design

Adapters Flip-Up Truck Round Standard Flip-Up
Capacity 10,000 lbs. 10,000 lbs. 10,000 lbs. 10,000 lbs.
Rise 81" 85 1/2" 79 1/8" 81 1/4"
Overall Height 13' 8 1/2" 13' 8 1/2" 13' 8 1/2" 13' 8 1/2"
Overall Width 11' 5 3/8" 11' 5 3/8" 11' 5 3/8" 11' 5 3/8"
Drive-Thru 95 1/4" 95 1/4" 95 1/4" 95 1/4"
Front Arm Min/Max 21 3/4" - 43 1/2" 20 1/2" - 40 3/4" 20 1/2" - 40 3/4" 24"- 40 3/4"
Rear Arm Min/Max 37" - 61" 34 1/2" - 58 1/4" 34 1/2" - 58 1/4" 40 1/4"- 61"
Min. Adapter Height 4 3/4" 4 1/8" 3 31/32" 4 3/4"
Max. Adapter Height 10 1/4” 5 3/8" 5 1/4" N/A
Min. Bay Size 12'x24' 12'x24' 12'x24' 12'x24'
Ceiling Height Min. 14' 14' 14' 14'
Motor 2 HP 2 HP 2 HP 2 HP
Voltage 208v-230v 208v-230v 208v-230v 208v-230v
Time of Full Rise/Decent 45 secs./40 secs. 45 secs./40 secs. 45 secs./40 secs. 45 secs./40 secs.

Operation & Maintenance Manuals, Installation Instructions and Parts Breakdown with Drawings and Part Numbers.

To order a part, locate part number from Drawing below and search for the Part Number on website.

800 Series:

Parts Breakdown

Installation Instructions - X

Installation Instructions - Y

Installation Instructions - Control Suppliment

Operation & Maintenance Manual

700 Series:

500 Series:

200 Series:
