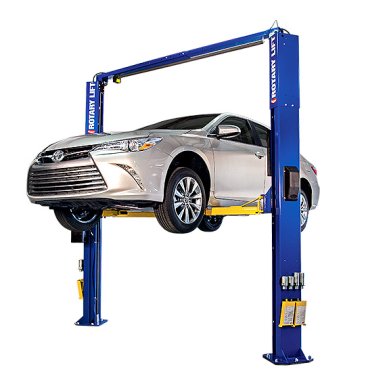

Rotary Two-Post Auto Lift (10,000lbs.-Capacity Asymmetric, 2' Extended) - R-SPOA10-RA-EH2

In stock(1000 items available)
  • $9620.00

10,000lbs.-Capacity Asymmetric Lift

Rotary Lift's Model SPOA10-RA-EH2 is a 10,000lbs. Capacity Two Post Asymmetric Car Lift with round rubber adapters and two feet of extended height. This surface-mounted car lift features a true asymmetric design for easy vehicle entry, and the factory-rotated columns allow a vehicle's doors to be fully opened while it's positioned on a lift!

Note: Freight charges for this product are NOT included and will be calculated when order is placed. Local sales tax rates will apply on all Rotary Lift purchases that are drop-shipped from the manufacturer. Regional customers may will-call this product at our warehouse in Hanover Park, IL.



Qty:



 EH2 For 10,000 lb. models: Includes 3” additional rise standard and provides 2 ft, extended height (models SPO10 and SPOA10). The Trio™ Arms are a new design that allows for low profile, 3-Stage arms and are exclusive to Rotary Lifts. All -RA and -TA style lifts are now designed with this feature.

ModelsSPOA10-TRIO-FA EH2SPOA10-TRIO-TA EH2SPOA10-TRIO-RA EH2SPOA10 Conventional EH2
Arm Type

Trio™ 3-Stage Design

Trio™ 3-Stage Design

Trio™ 3-Stage Design

Conventional 2-Stage Design

AdaptersFlip-UpTruckRoundStandard Flip-Up
Capacity10,000 lbs.10,000 lbs.10,000 lbs.10,000 lbs.
Rise81"85 1/2"76 1/8"81 1/4"
Overall Height13' 8 1/2"13' 8 1/2"13' 8 1/2"13' 8 1/2"
Overall Width11' 5 3/8"11' 5 3/8"11' 5 3/8"11' 5 3/8"
Drive-Thru95 1/4"95 1/4"95 1/4"95 1/4"
Front Arm Min/Max21 3/4" - 43 1/2"20 1/2" - 40 3/4"20 1/2" - 40 3/4"24"- 40 3/4"
Rear Arm Min/Max37" - 61"34 1/2" - 58 1/4"34 1/2" - 58 1/4"40 1/4"- 61"
Min. Adapter Height4 3/4"4 1/8"3 31/32"4 3/4"
Max. Adapter Height10 1/4”5 3/8"5 1/4"N/A
Min. Bay Size12'x24'12'x24'12'x24'12'x24'
Ceiling Height Min.14'14'14'14'
Motor2 HP2 HP2 HP2 HP
Voltage208v-230v208v-230v208v-230v208v-230v
Time of Full Rise/Decent45 secs./40 secs.45 secs./40 secs.45 secs./40 secs.45 secs./40 secs.

 Additional adapters that will fit this lift include:

  • R-T110564 Auxiliary adjustable thread-up truck adapter with a rubber pad.
  • R-T100271 Adapter Extension Kit provides additional lifting height when vehicles require additional clearance. Includes four (4) 3-1/2" and four (4) 5" adapter extensions, mounting rack and hardware.
  • R-T100274 FA Flip Up Adapters is the Rotary tried and true flip-up adapter that is now available for the Trio™ Arm
    • SKU
      R-SPOA10-RA-EH2
    • Weight
      9999.9900 lbs
  • Manufacturer
    Rotary Lift

Operation & Maintenance Manuals, Installation Instructions and Parts Breakdown with Drawings and Part Numbers.

To order a part, locate part number from Drawing below and search for the Part Number on website.

800 Series:

Parts Breakdown

Installation Instructions - X

Installation Instructions - Y

Installation Instructions - Control Suppliment

Operation & Maintenance Manual

700 Series:

500 Series:

200 Series:
